Permanent magnet variable speed low pressure screw air compressor

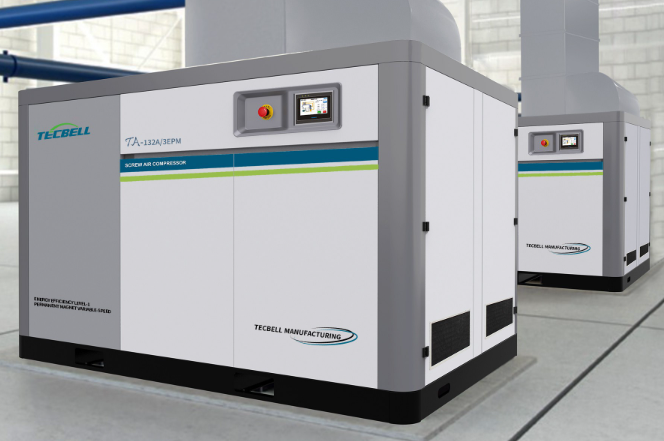

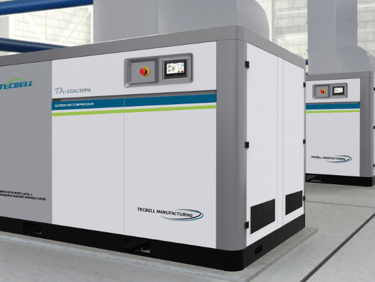

TA Series Permanent magnet variable speed low pressure screw air compressor

All series of machines exceed energy efficiency level-1 TA series low pressure 15 - 400 KW

Details Machine Parameters :

Model Range : TA - [ 30 - 315 ] A/W [ 2- 4 ] EPM

Model Range : TA - [ 15 - 400 ] A/W [ 4.5 - 5.5 ] EPMII

PRESSURE : 0.2 - 0.55 Mpa

Exhaust Volume 3.5 - 108.2 m3 / min

Power : 15 - 400 KW

Cooling Method : Air / Water

PRODUCT ADVANTAGES :

1. Independently develop a new generation of efficient and energy saving host and optimize oil circuit design

2. Customized high efficiency rare earth permanent magnet variable speed synchronous motor with no loss of excitation at 180 C and efficiency up to 96.8%

3. Dual frequency conversion; A dual frequency conversion control system that combines high performance heave duty frequency converters with innovative design of permanent magnet motor technology

4. Using fluid dynamics simulation software to optimize the design and calculation of the centrifugal fan cooling system adopting an independent closed suction and exhaust structure making the internal temperature of the machine close to the ambient temperature

5. The forced lubrication system of a large flow centrifugal pump ensures the fuel injection rate of the main engine, optimizes the oil gas mixing ratio and ensures the normal operation of the lubrication system of the air compressor unit even at extremely low exhaust pressure

6. Multiple additional protection for constant temperature and pressure output, intelligent control and display, standard IOT, remote monitoring and intelligent display of operating conditions

7. All series of machines exceed energy efficiency level 1
