Low power variable frequency screw vacuum pump 5.5 - 37 KW

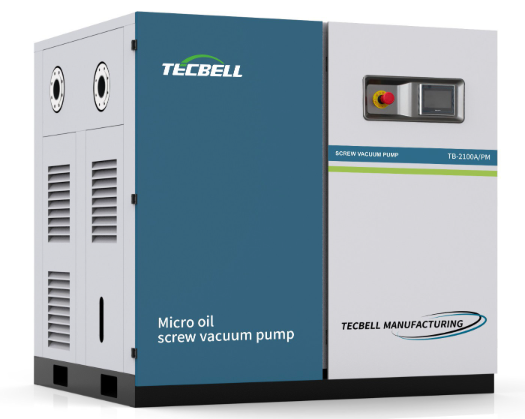

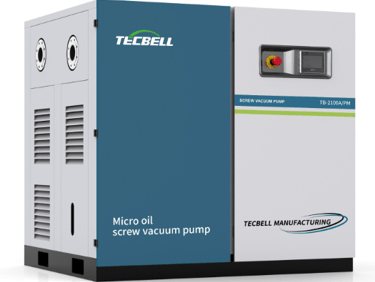

TB Series micro oil screw vacuum pump MODEL RANGE : TB 450 - 2100 A/PM

Details Machine Parameters :

Extreme Vacuum : 0.4 mbar (A)

Pump Capacity : 450 - 2100 m3/h

Power : 5.5 - 37 KW

Cooling Method : Air

High power variable frequency screw vacuum pump 45 - 110 KW

PRODUCT ADVANTAGES :

1. Innovative oil pump free design ; vacuum pump host technology independently developed and designed by Tecbell, which is self lubricated by negative pressure. There is no need for separate oil pump to forcefully inject fuel and there is no risk of oil pump energy consumption and failure.

2. Higher stability ; vacuum pump host technology independently developed and designed by Tecbell which is self lubricated by negative pressure

3. Constant pressure control : The permanent magnet variable speed intelligent control system technology innovatively designed by Tecbell is equipped with the intake valve capacity regulation function so that it is always in the best performance under any working condition and the pressure is more stable. Maintain ultra high oil mist control capability under all operating pressures reducing environmental impact.

4. Ultra low lifecycle cost : Tecbell innovative design of fixed point control technology optimizes energy usage based on process vacuum level. According to the actual required vacuum level or speed the vacuum pump provides just enough gas to meet the demand without any waste and provides customers with an ultra low life cycle cost.

5. High - efficiency permanent magnet variable speed synchronous motor is adopted and the motor with F class insulation B class temperature rise, increased base number and IP55 protection level is optimized for air compressor applications with motor efficiency up to 96.8 %

6. The dual frequency conversion control system combining high performance frequency converters with innovative design of permanent magnet motor technology has significant energy saving effect

7. Multiple additional protection for constant temperature and pressure output, intelligent control and display, standard IOT remote monitoring and intelligent display of operating conditions.

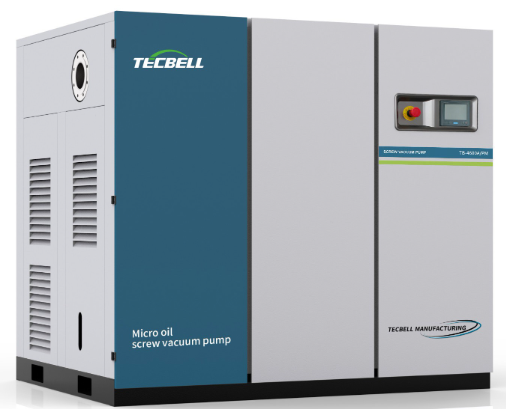

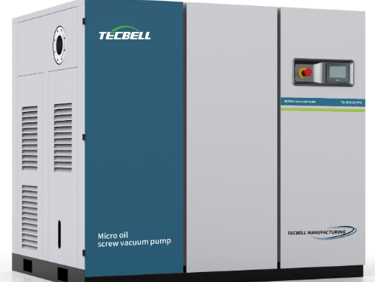

TB Series micro oil screw vacuum pump MODEL RANGE : TB 2800 - 6300 A/W PM

Details Machine Parameters :

Extreme Vacuum : 0.4 mbar (A)

Pump Capacity : 2800 - 6300 m3/h

Power : 45 - 110 KW

Cooling Method : Air / Water
