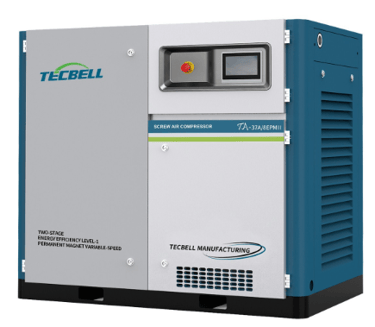

Permanent magnet variable speed screw air compressor 7.5 - 75 KW

Permanent magnet variable speed screw air compressor 90 - 185 KW

Details Machine Parameters :

Model Range : TA - [ 7 - 75 ] A/ [ 7 - 1.25 ] EPM II

PRESSURE : 0.7 - 1.25 Mpa

Exhaust Volume 0.86 - 14 m3 / min

Power : 7.5 - 75 KW

Cooling Method : Air / water

Permanent magnet variable speed screw air compressor 200 - 355 KW

Details Machine Parameters :

Model Range : TA - [ 200 - 355 ] A/ [ 7 - 1.25 ] EPM II

IPRESSURE : 0.7 - 1.2 Mpa

Exhaust Volume 29.05 - 65.34 m3 / min

Power : 200 - 355 KW

Cooling Method : Air / water

PRODUCT ADVANTAGES :

1. The new generation high efficiency energy saving host independently developed and designed by Tecbell with optimized design of the rotor profile and exhaust port structure, uses contact surfaces, contact lines and leakage triangle areas to achieve optimal performance and improve volumetric efficiency.

2. The high efficiency motor with low temperature rise and high torsional strength, combined with excellent screw rotors, can reduce the life cycle cost of the compressor, significantly improving the energy saving effect by 15 % compared to the previous generation of products

3. The patented independent closed suction and exhaust cooling system as well as the integrated air filter assembly filtration system, ensure that the internal temperature and suction temperature of the unit are close to the ambient temperature resulting in lower energy consumption

4. A patented temperature control system that accurately controls oil temperature. The temperature control valve with flange connection makes the internal oil circuit connection other unit more concise and firm, reducing pressure drop, leakage points, energy consumption and fault occurrence rate of the unit

5. The low speed centrifugal fan and the plate fin heat exchanger cooling system designed with large waste heat make it more stable to operate in harsh operating environments, lower operating cost and longer service life

6. High - efficiency permanent magnet variable speed synchronous motor is adopted and the motor with F class insulation B class temperature rise, increased base number and IP55 protection level is optimized for air compressor applications with motor efficiency up to 96.8 %

7. The dual frequency conversion control system combining high performance frequency converters with innovative design of permanent magnet motor technology has significant energy saving effect on the unit

8. Multiple additional protection for constant temperature and pressure output, intelligent control and display, standard IOT remote monitoring and intelligent display of operating conditions.

9. All series of machines exceed energy efficiency level 1

Details Machine Parameters :

Model Range : TA - [ 90 - 185 ] A/ [ 7 - 1.25 ] EPM II

IPRESSURE : 0.7 - 1.25 Mpa

Exhaust Volume 12.1 - 34.22 m3 / min

Power : 90 - 185 KW

Cooling Method : Air / water
